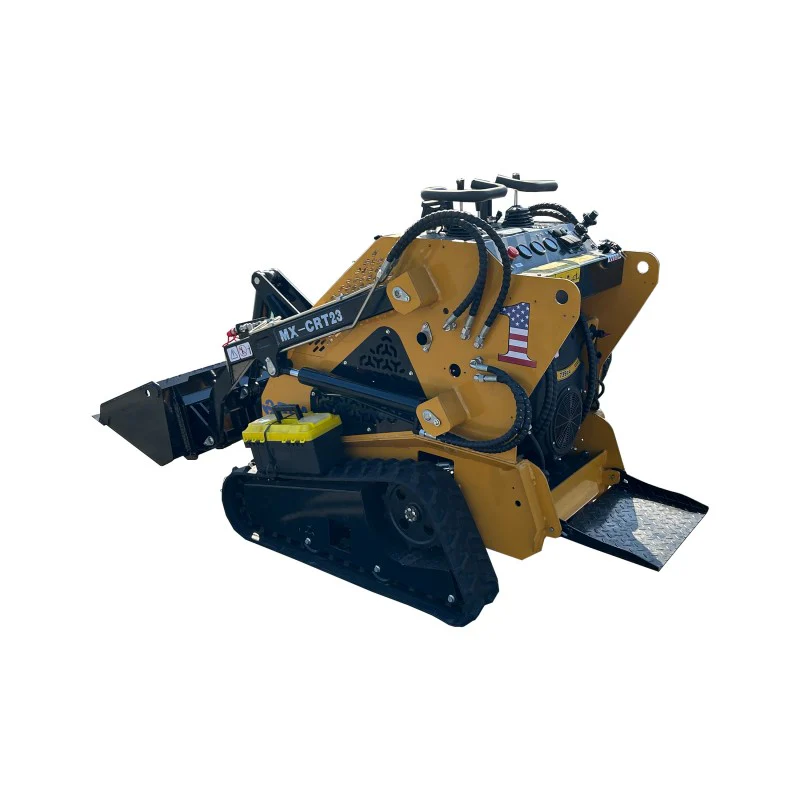

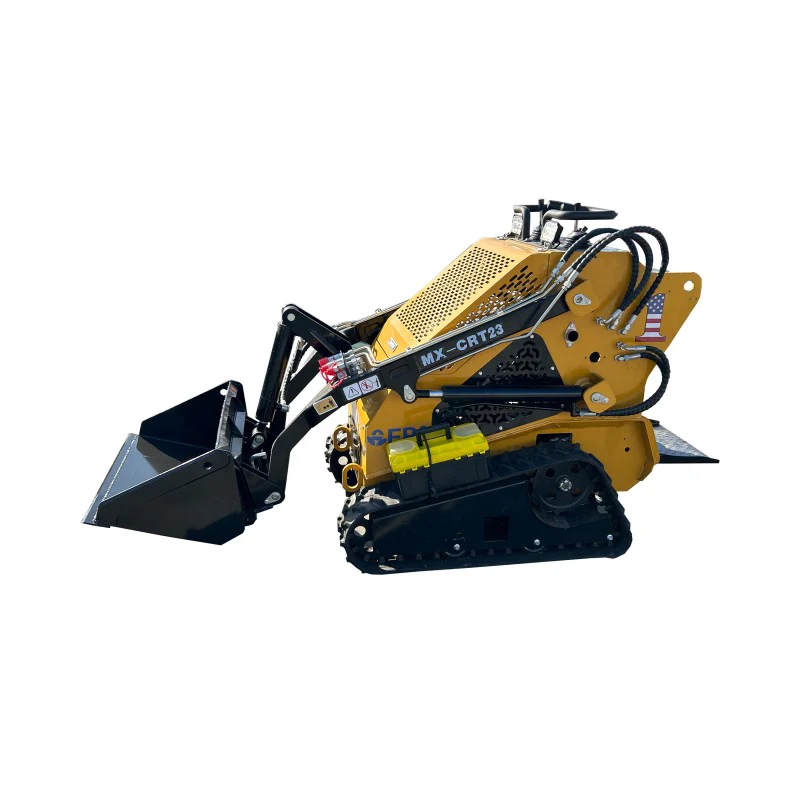

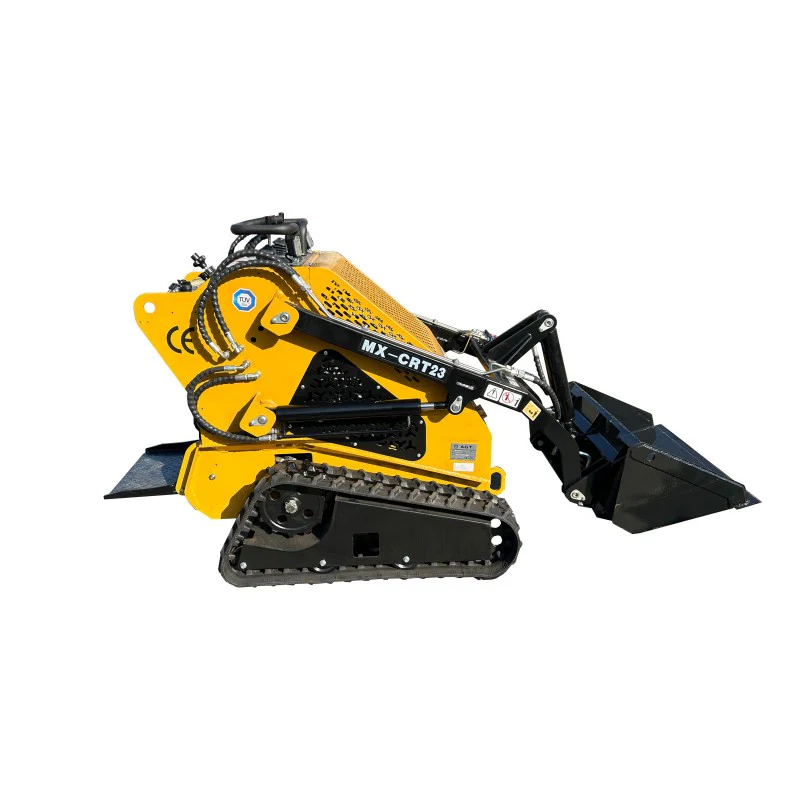

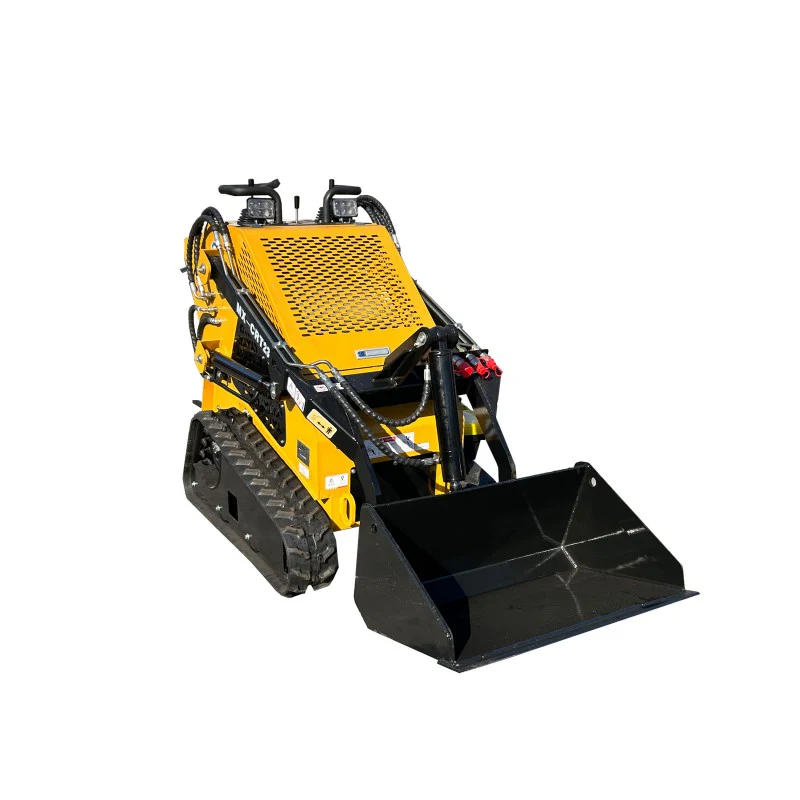

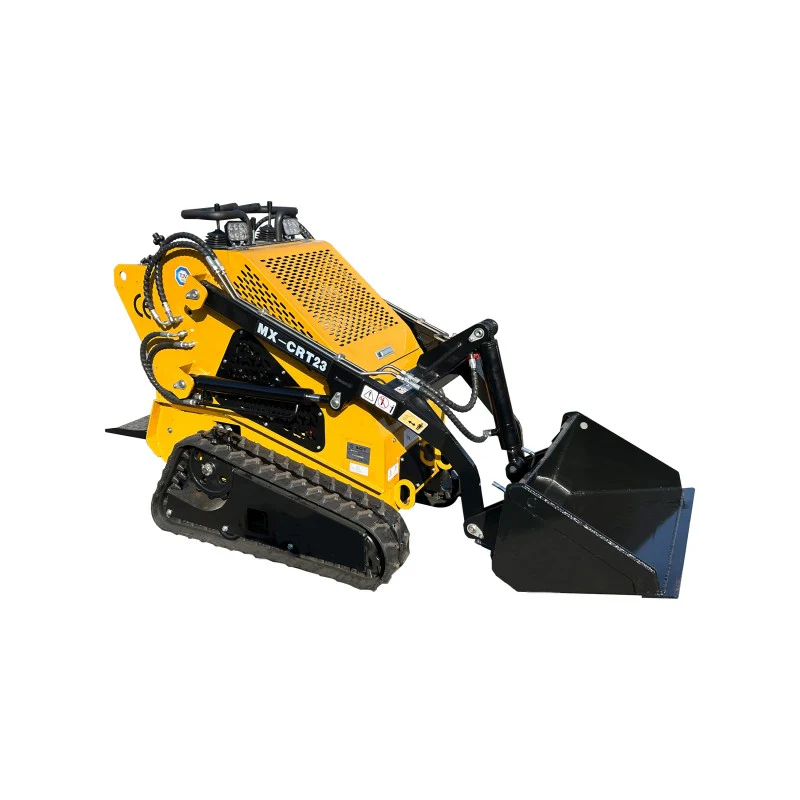

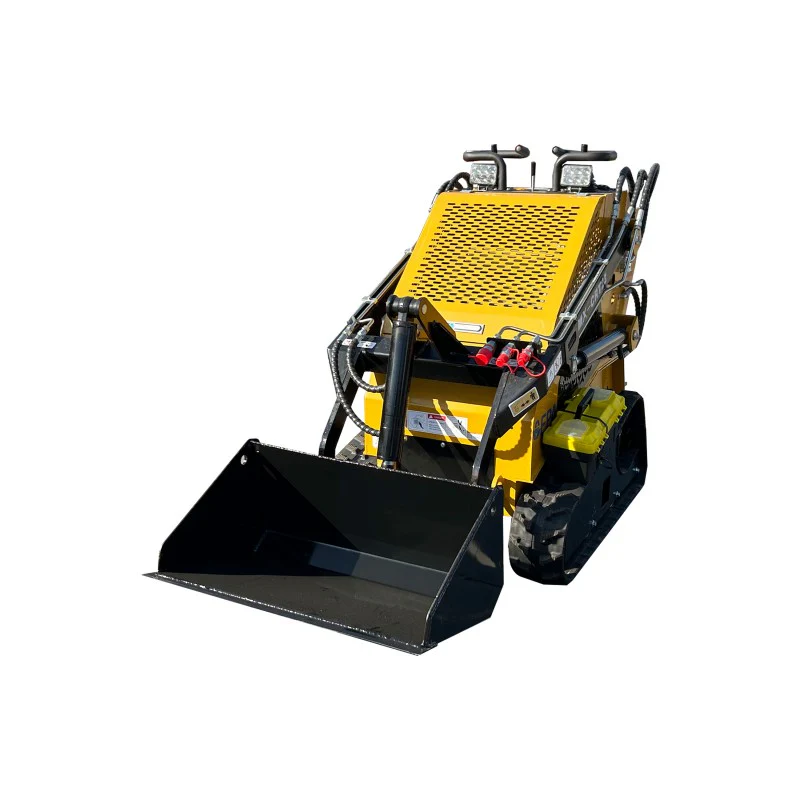

1 ton, RATO engine Mini Skid Steer | MX-CRT23

We will need a direct phone number for the carrier to contact you with for final delivery

Technical Data:

• Bucket Capacity: 0.1 m³

• Travel Speed: 4 km/h

• Max Lifting Force: 200 kg

• Max Working Height: 2285 mm

• Max Pin Height: 1967 mm

• Max Unloading Height: 1575 mm

• Reach at Max Unloading Height: 661 mm

• Wheelbase: 905 mm

• Ground Clearance: 163 mm

• Bucket Discharge Angle: 23°

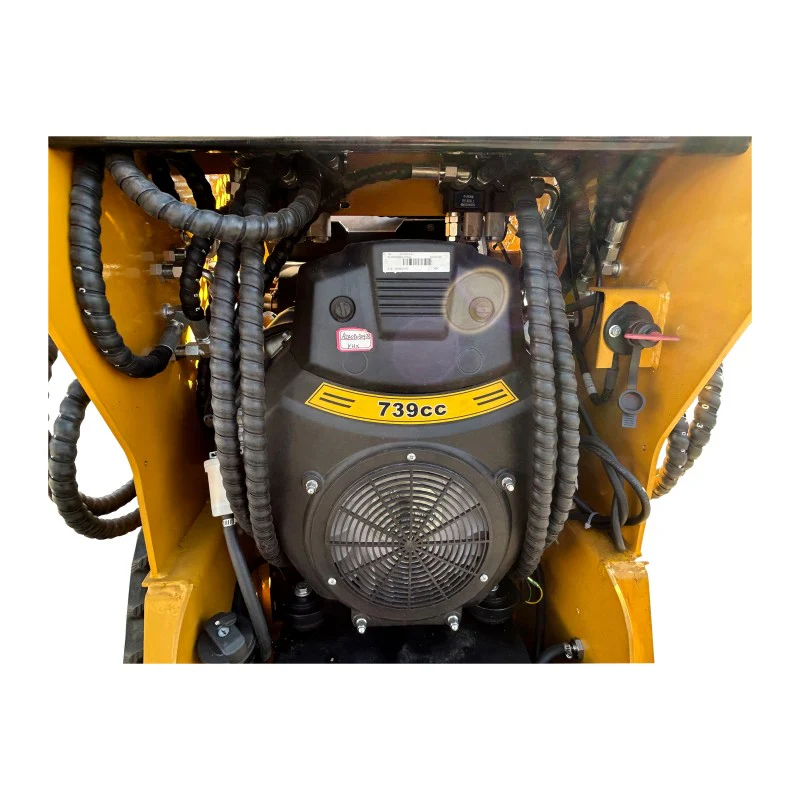

Engine:

• Rato R740D (2-cylinder, fan-cooled gasoline)

• Max Horsepower: 24 ps

• Max Power: 17 kW @ 3600 rpm

• Fuel Type: 92# Gasoline

• Fuel Tank: 19.6 L

• Engine Oil Capacity: 1.6 L

Tracks:

• Rubber Tracks – 180 mm * 72 pitch * 37 sections

Dimensions:

• Bucket Width: 812 mm

• Overall Length: 2135 / 2432 mm

• Overall Width: 904 mm

• Overall Height: 1364 mm

• Body Width: 810 mm

• Slewing Radius: 1493 mm

• Hydraulic Tank: 33 L
