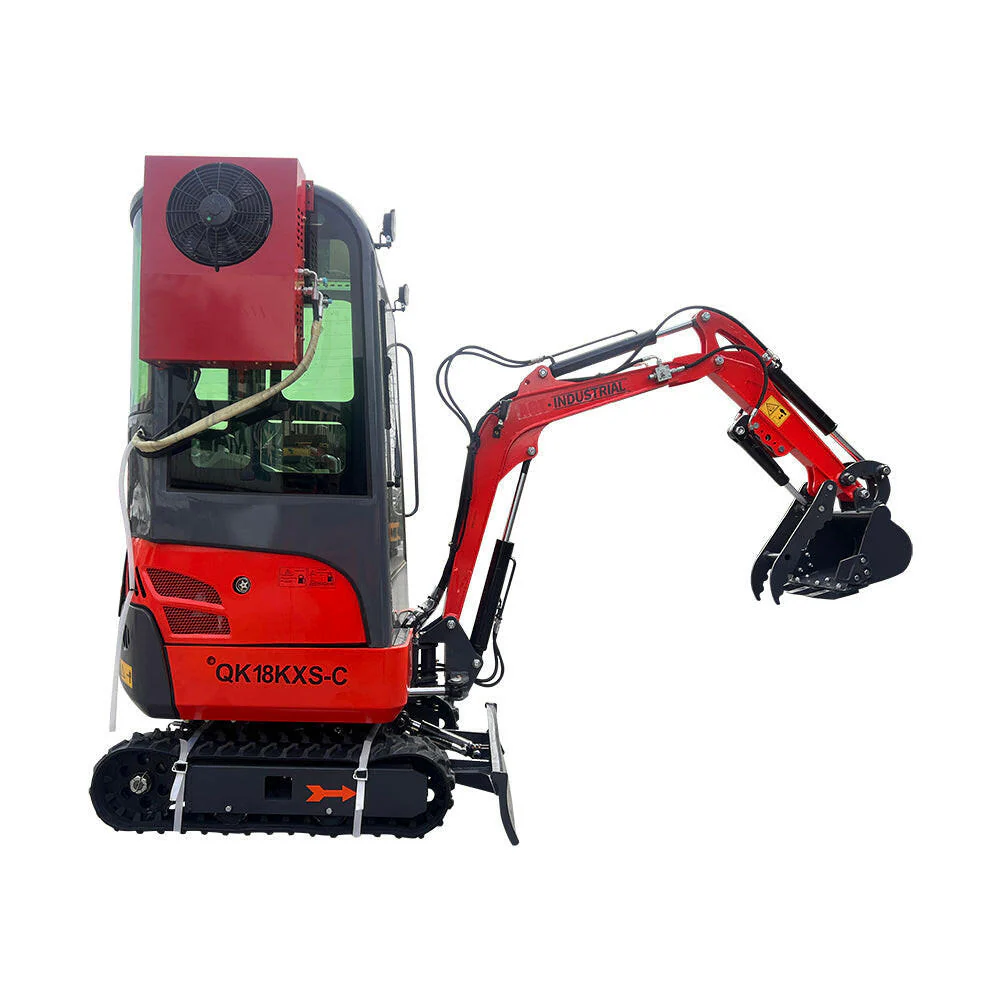

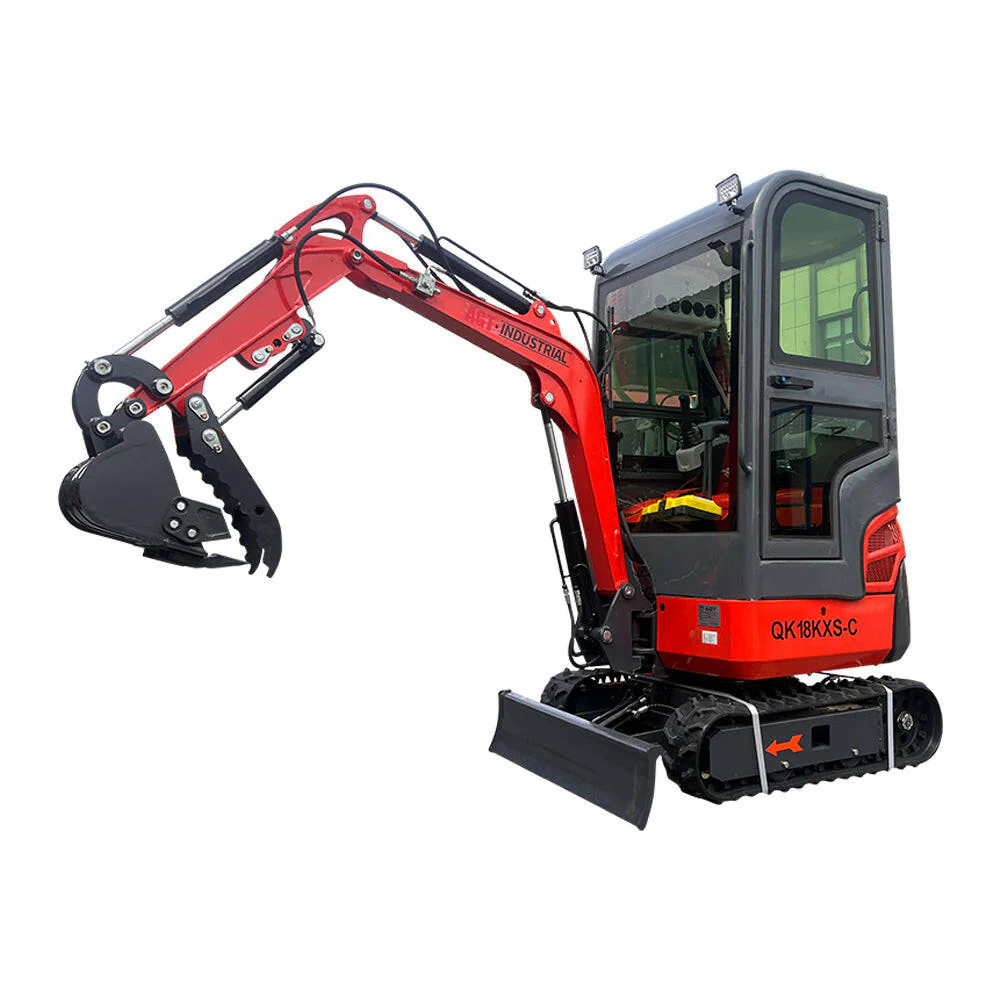

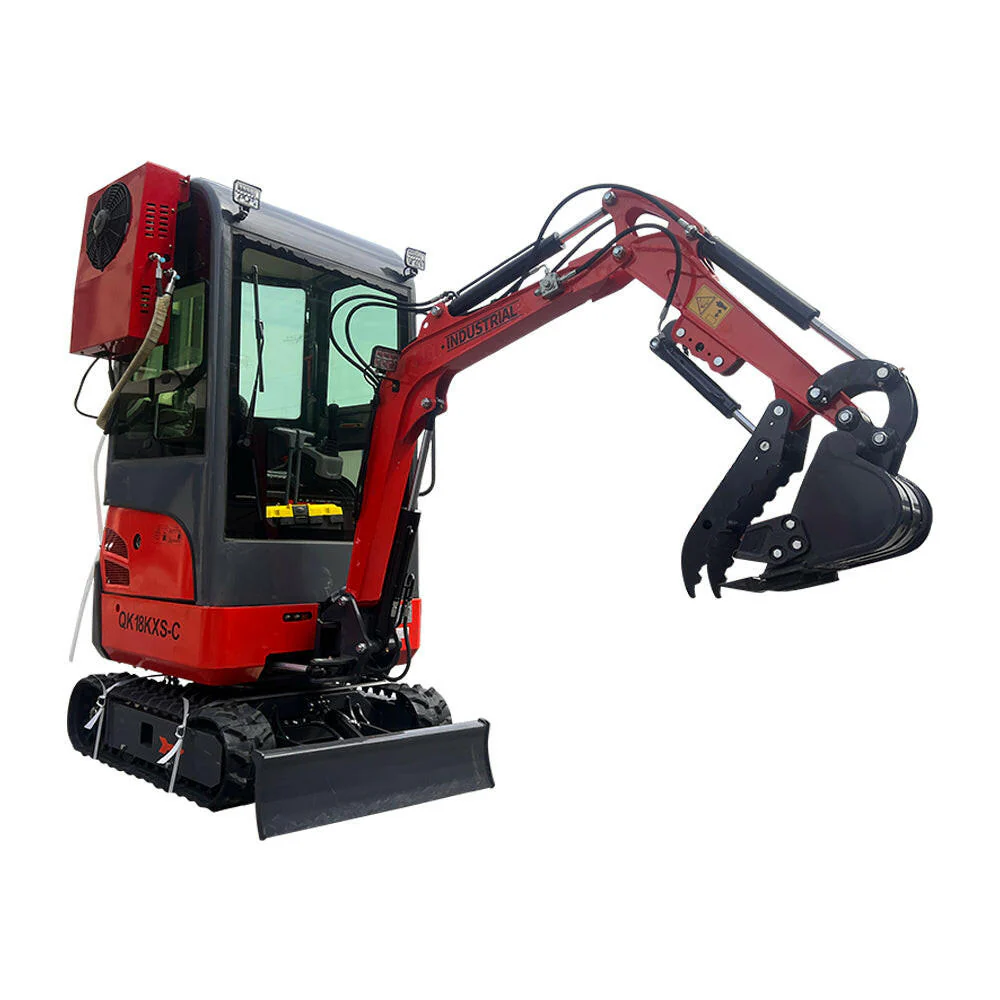

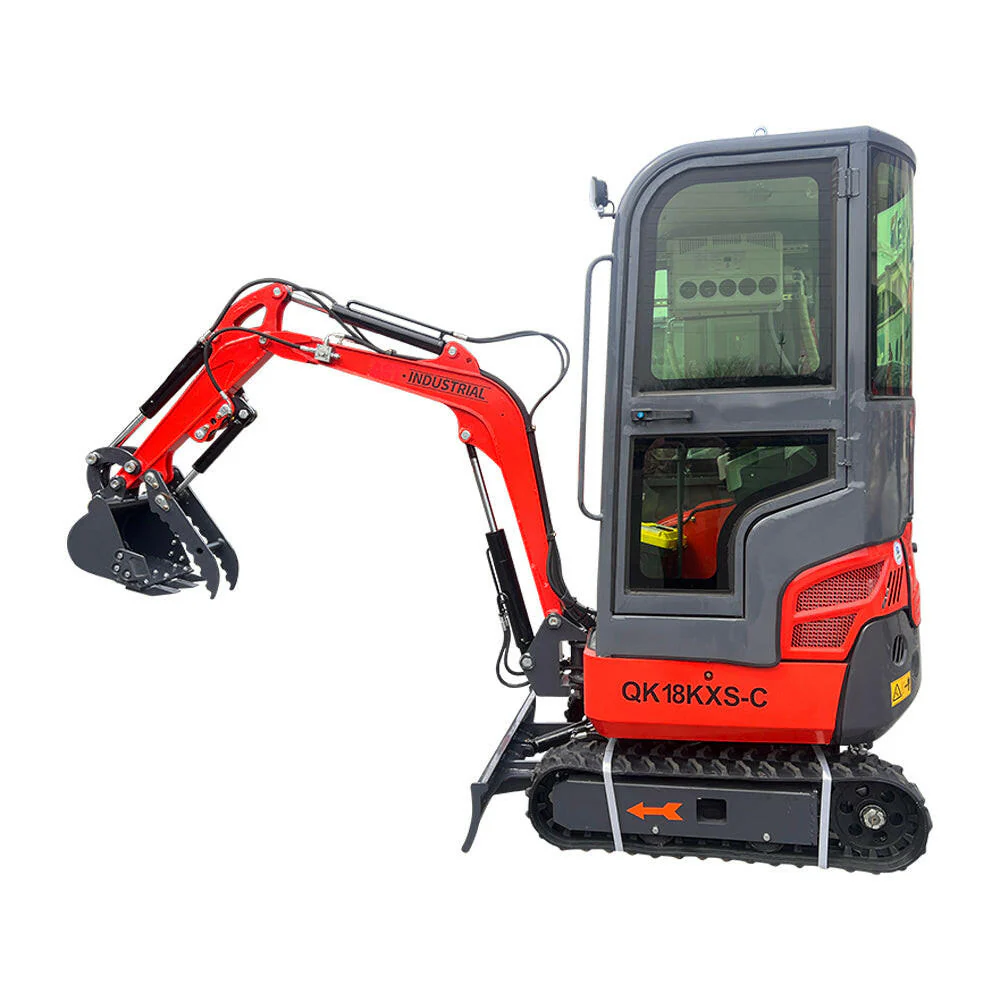

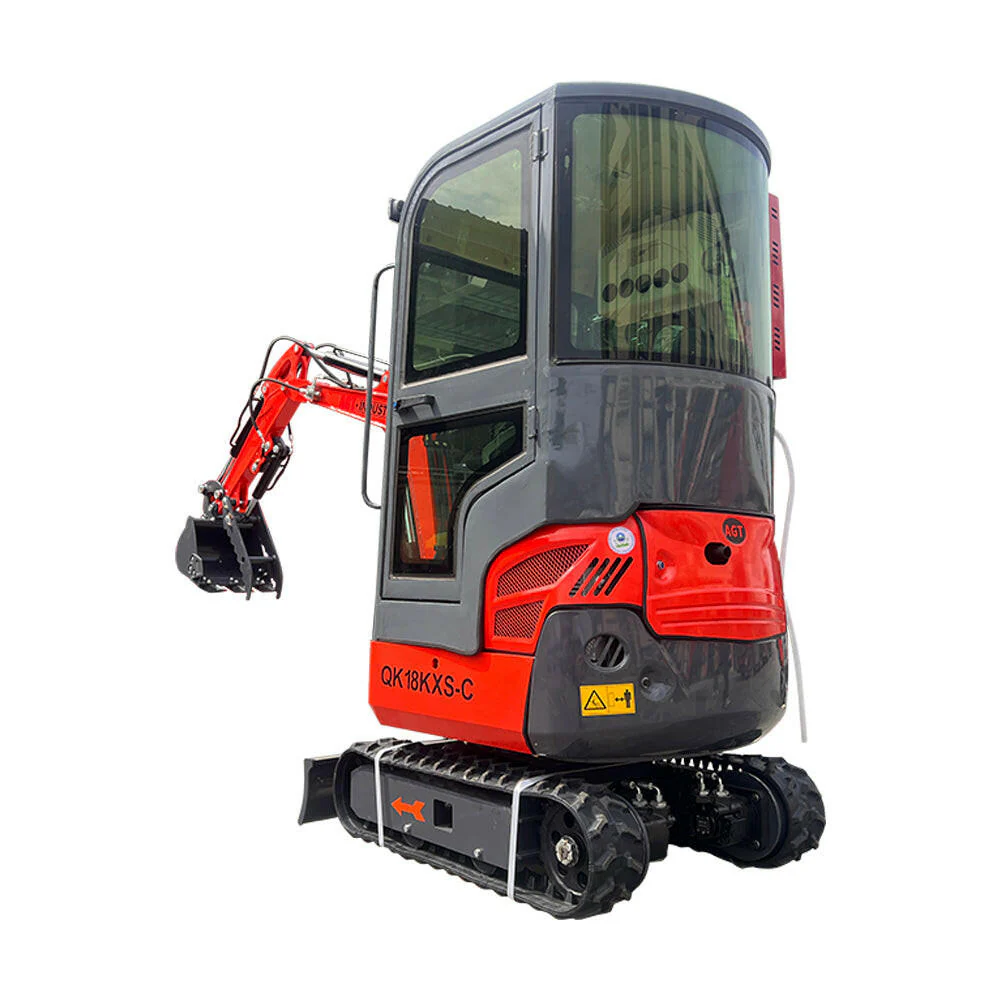

1-Ton, Kubota Engine Mini & Small Excavator w/Air Conditioning, Side Swing & Enclosed Cab | AGT-KH18K-CC

Technical Data:

• Operation Weight: 1 Ton
• Engine: Kubota Diesel Engine
• Equipped with Air Conditioned Enclosed Cabin
• Equipped with Side Swing

Engine:

• Brand: Kubota
• Model: D722
• Type: 3-cylinder diesel engine
• Power Output: 10.2 kW
• Maximum Speed: 3,600 RPM
• Emissions Compliance: Tier 4

Performance:

• Operating Weight: 980 kg (2,160 lbs)
• Maximum Digging Depth: 1,693 mm (66.7 inches)
• Maximum Digging Height: 2,560 mm (100.8 inches)
• Maximum Loading Height: 1,800 mm (70.9 inches)
• Minimum Rotation Radius: 3,060 mm (120.5 inches)
• Travel Speed: 0-1.8 km/h
• Climbing Ability: 15°

Dimensions:

• Overall Length: 2,925 mm (115.2 inches)
• Overall Width: 958 mm (37.7 inches)
• Overall Height: 2,422 mm (95.4 inches)

Hydraulic System:

• Main Pump Type: GP510803
• Rated Set Pressure: 25 MPa
• Maximum Flow Rate: 21.6 L/min
• Multi-Circuit Valve: 4 mechanical + 4 hydraulic
• Rotary Hydraulic Motor Type: BM2-315
• Traveling Hydraulic Motor Type: BM6-315

Additional Features:

• Cabin: Enclosed with air conditioning
• Side Swing: 30° angle
• Bucket Capacity: 0.03 m³

Specific Data:

Operation Weight	980kg
Engine	Kubota（D722）
Travel speed low/high (km/h)	0-1.8
Capacity of bucket	0.03 m³
Max Digging Depth	1693mm
Max Digging Height	2560mm
Max Load Height	1800mm
Min Rotation Radius	3060mm
Max Angle of Climb	15°
Side Swing Angle	30°

Total length	2925mm
Overall width	958mm
Total Height	2422mm
Maximum speed (rpm)	3600
Rated set pressure (Mpa)	25
Maximum power	10.2
Main pump type	GP510803
Maximum flow rate of main pump(L/min)	21.6
Multi circuit valve	4 mechanical + 4 hydraulic
Rotary hydraulic motor type	BM2-315
Traveling hydraulic motor	BM6-315
