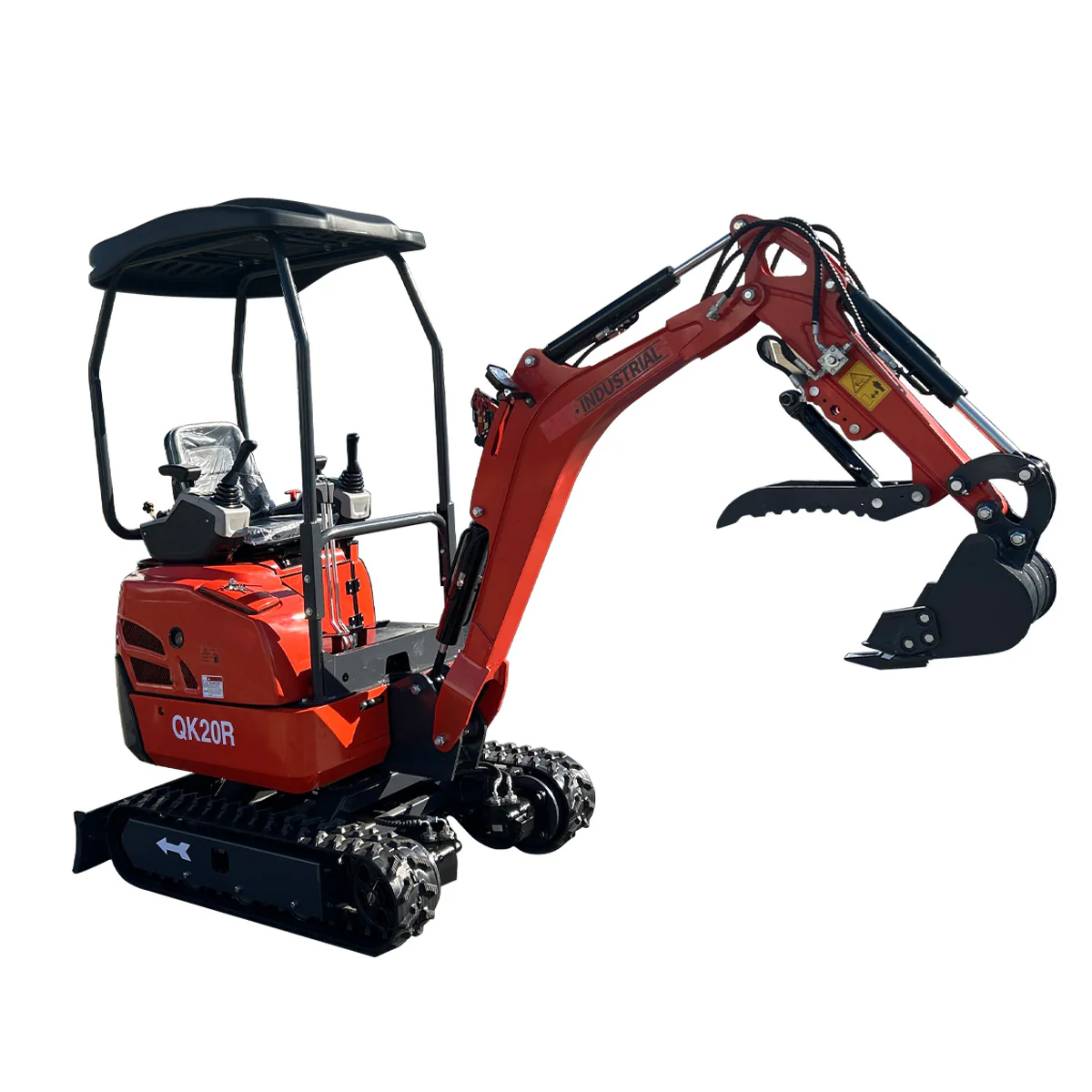

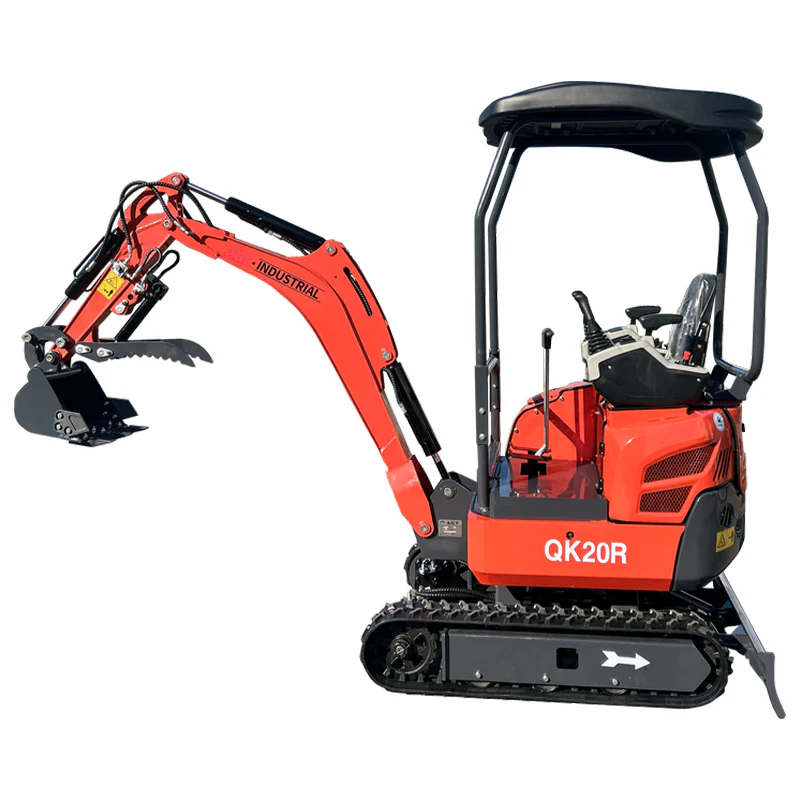

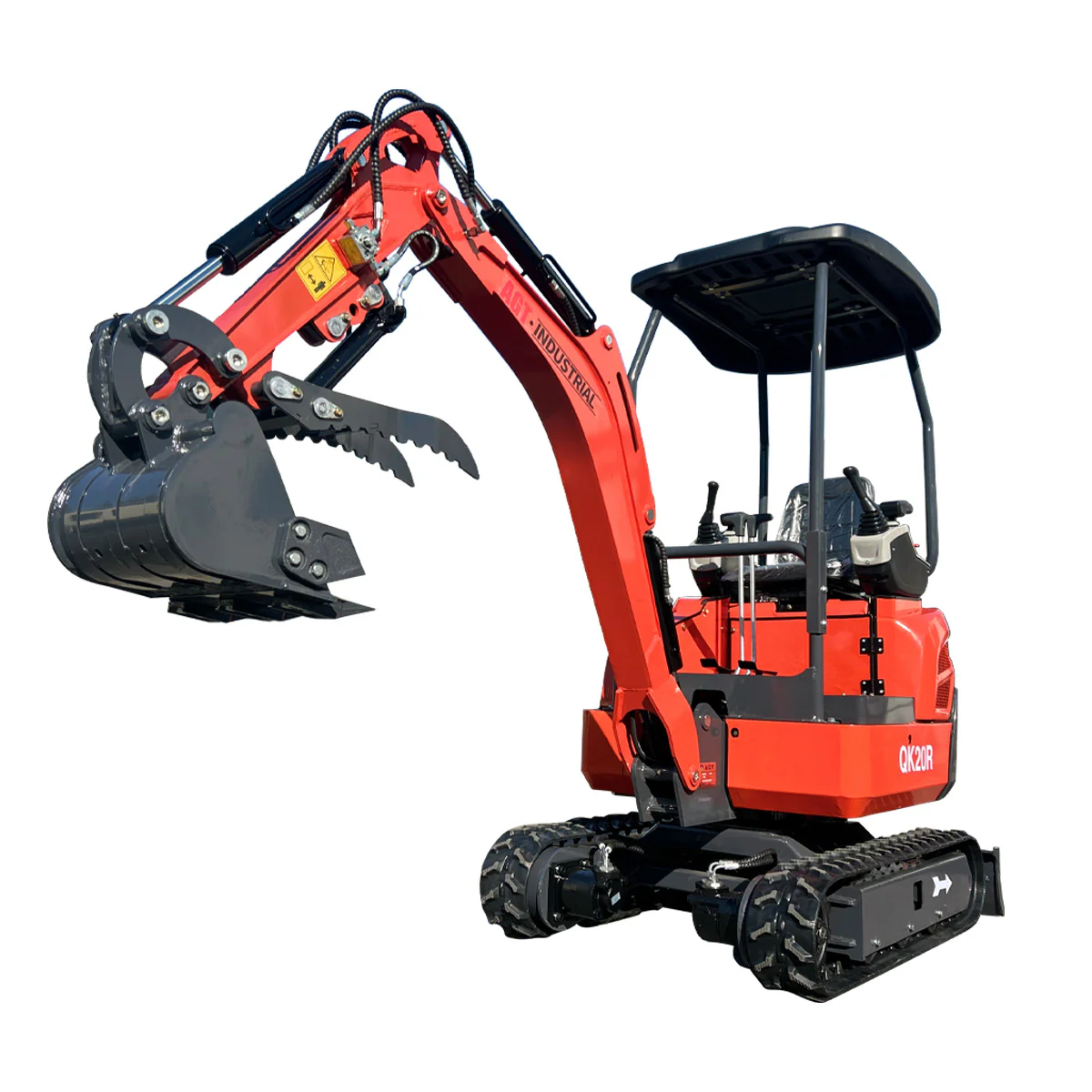

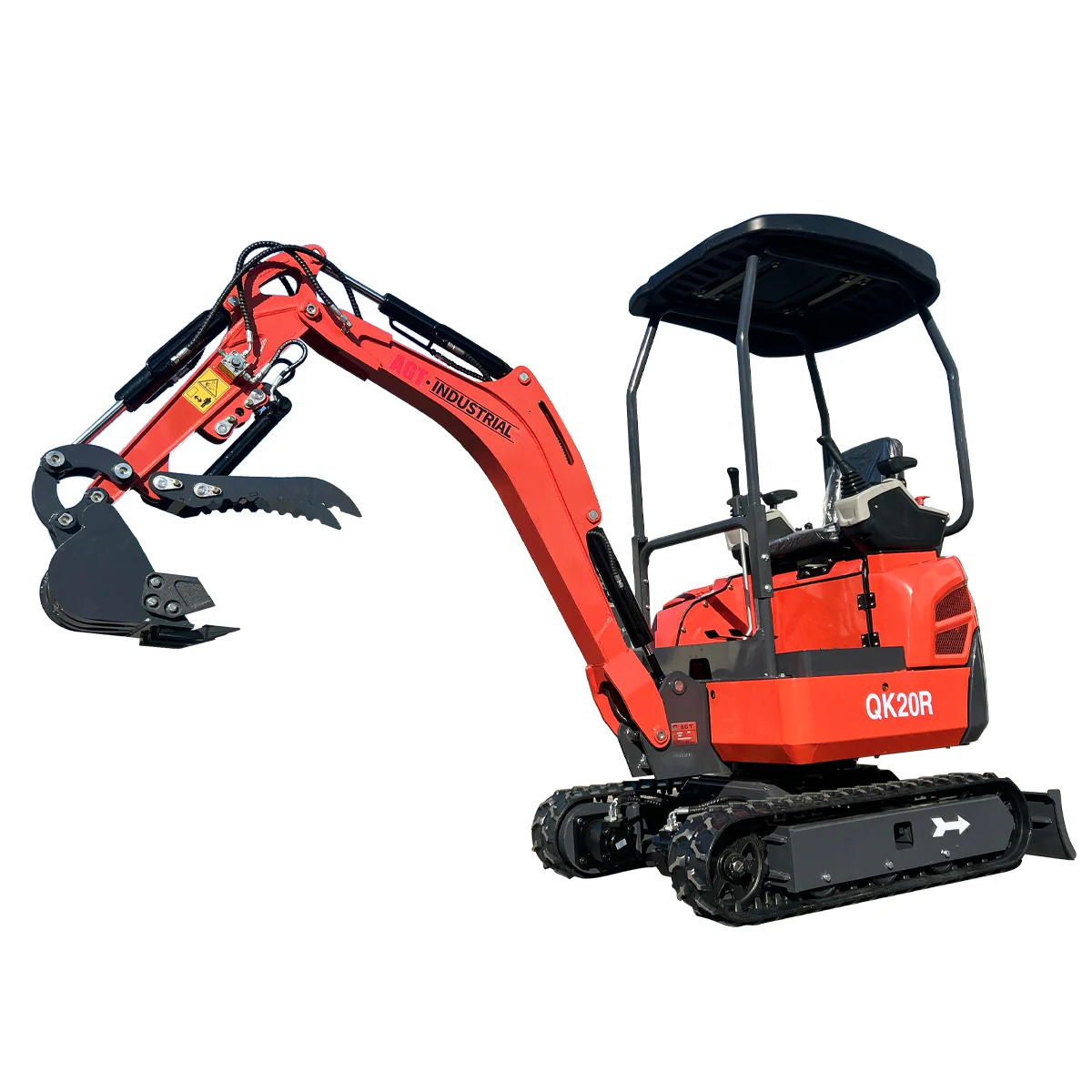

1 Ton, RATO Engine Mini Excavator | QK20R

In-Action Video

Technical Data:

• Operating Weight 980 kg
• Bucket Capacity 0.03 m³
• Max Digging Depth 1,693 mm
• Max Digging Height 2,560 mm
• Max Dumping Height 1,800 mm
• Min Swing Radius 3,060 mm
• Max Climbing Angle 15°
• Travel Speed 0–1.8 km/h

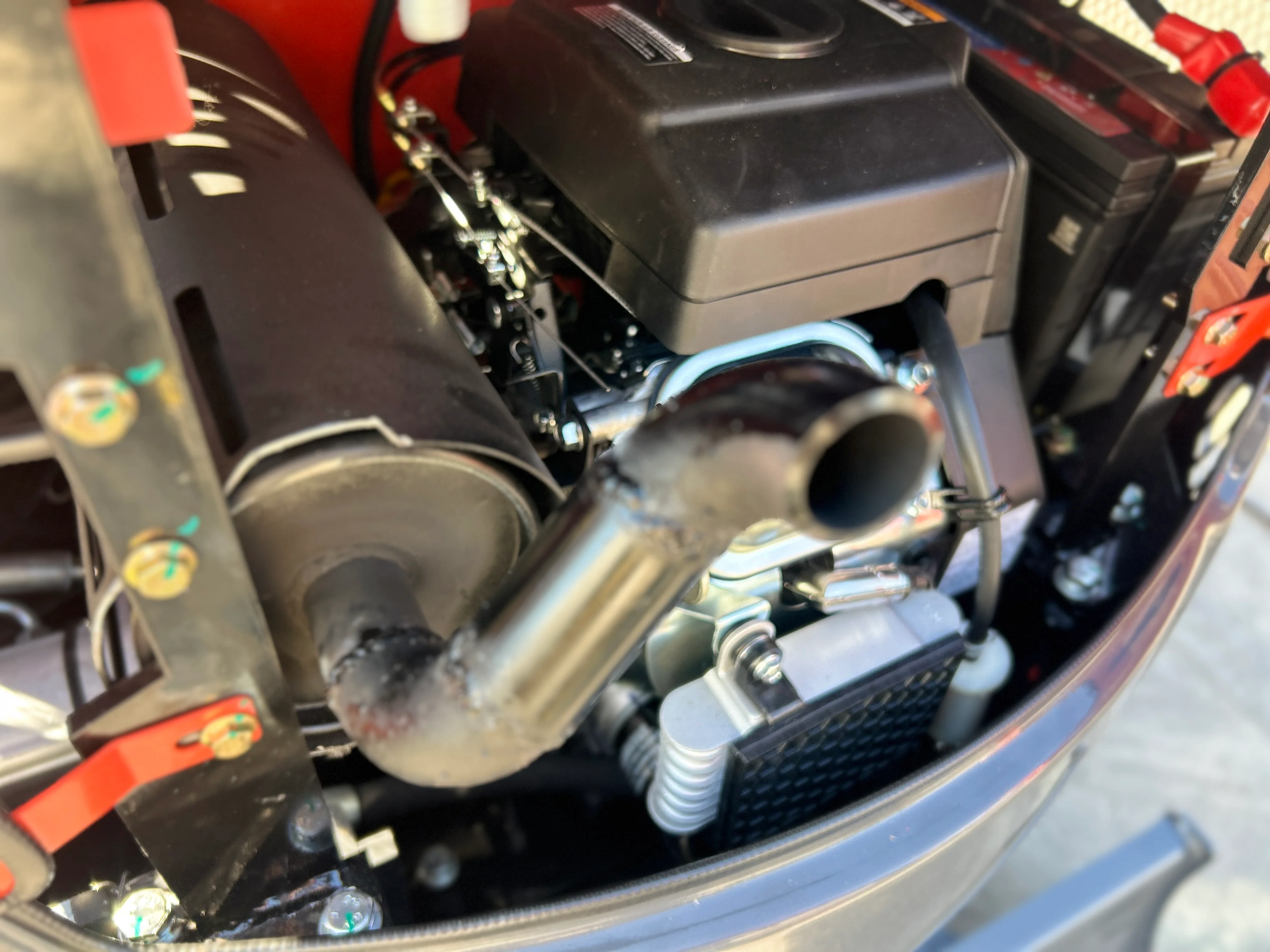

Engine:

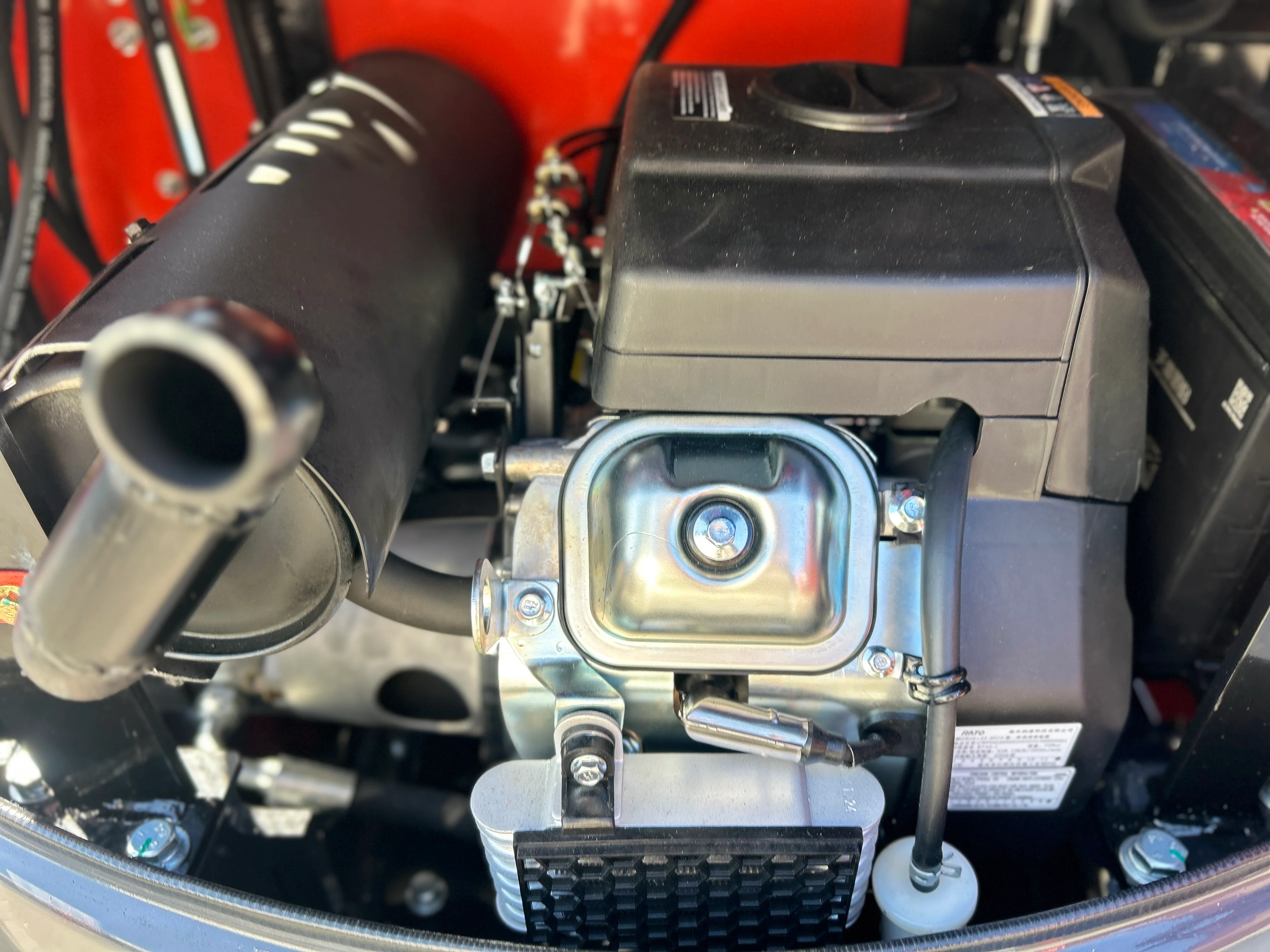

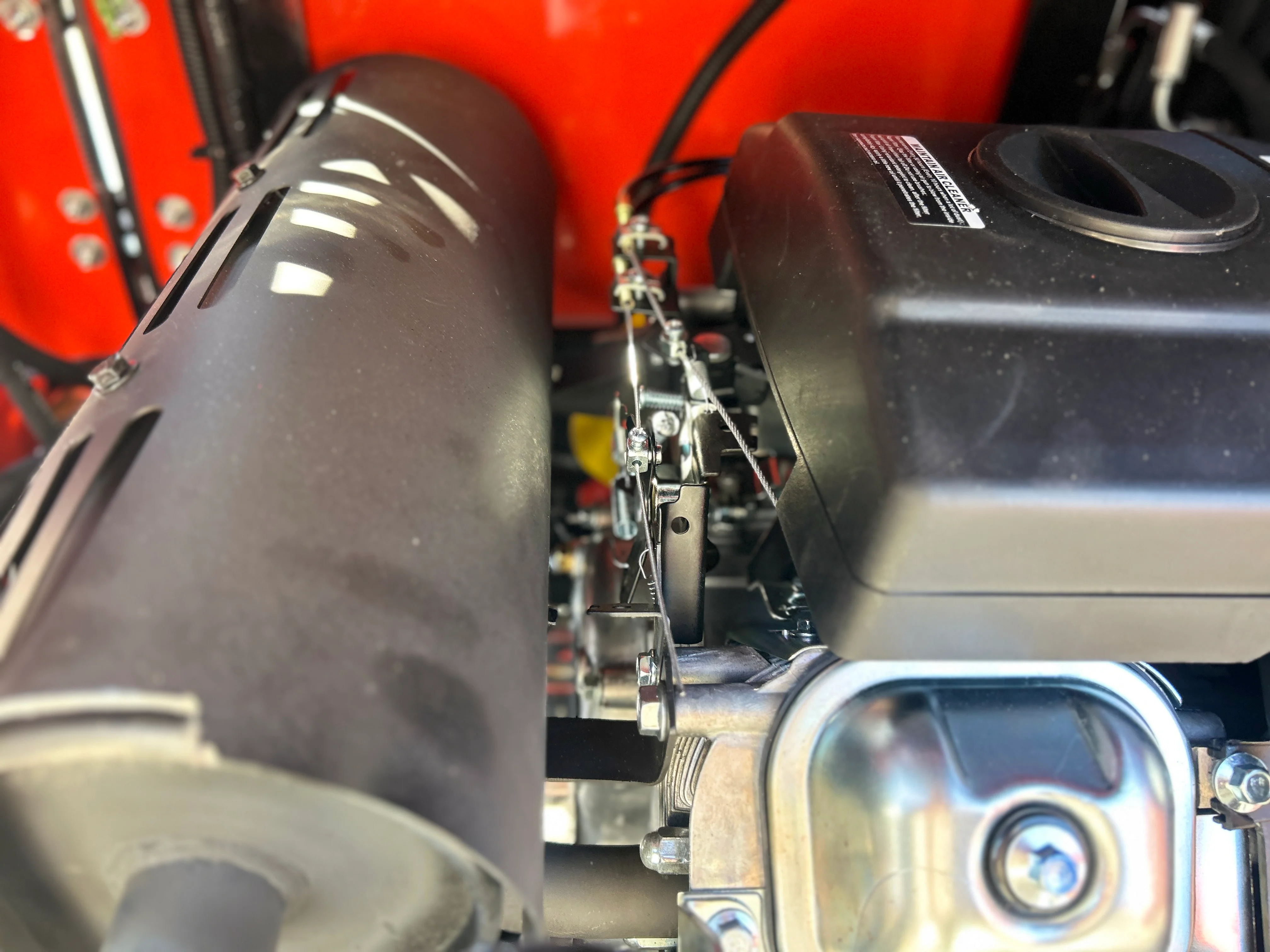

• Engine Model RATO Gasoline Engine
• Rated Power 23 hp (16.8 kW)
• Fuel Type Gasoline (#92)
• Fuel Tank Capacity 6.6 L

Hydraulics:

• Hydraulic Pump Type Gear Pump (GP510803)
• Hydraulic Flow 21.6 L/min
• System Pressure 25 MPa

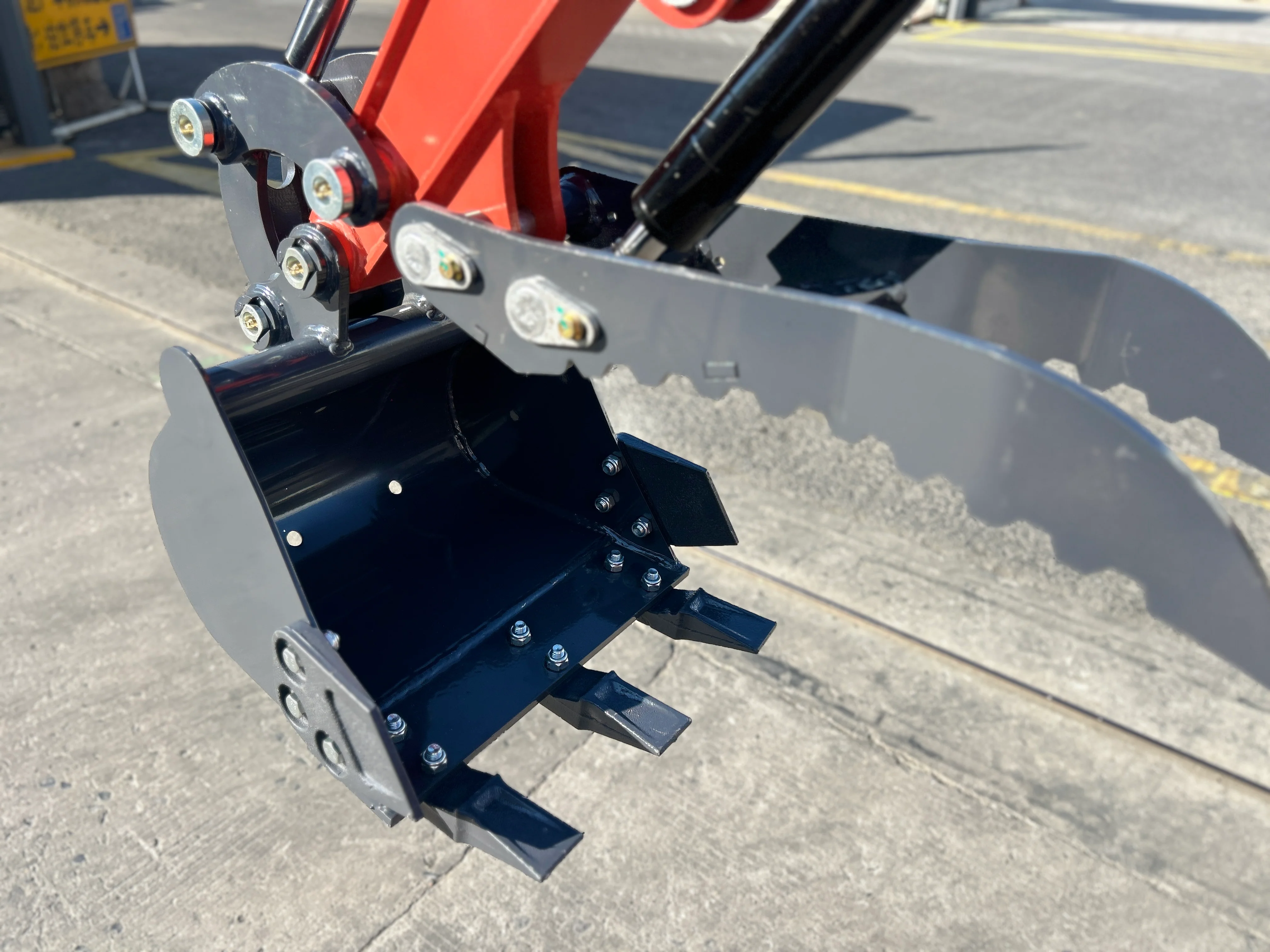

• Auxiliary Hydraulic Thumb Standard
• Multi-Circuit Valve 4 Mechanical + 4 Hydraulic
• Rotary Hydraulic Motor BM2-315

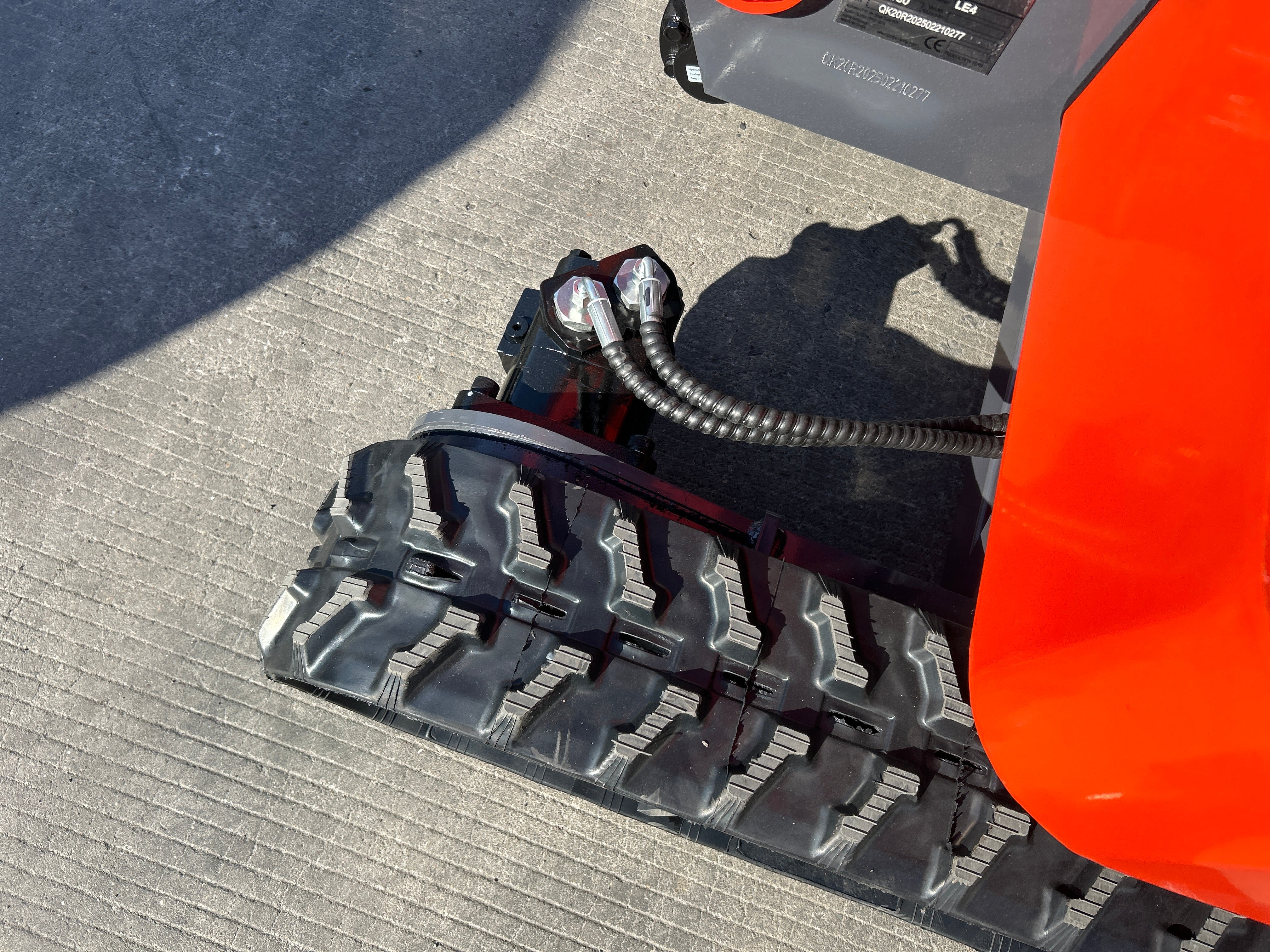

• Traveling Hydraulic Motor BM6-315

Dimensions:

• Overall Length 2,925 mm
• Overall Width 958 mm
• Overall Height 2,422 mm
